Amount of energy of the stator (functional model)

MetrologicalDetermination of the stored energy in the stator of the function model

When explaining the content and scope of the "Power Maglev" study, the question of the amount of stored energy in the stator of the functional model arose several times. The functional model is actually intended solely to prove a technical use of the magnetic field in the air gap. Of course, in the magnetic field but also the supplied electrical energy "between" - stored.

Summary

The implementation of the Power Maglev project requires long-term planning.
Evidence of the feasibility is provided only with completion of an investment model project.
Therefore, became theillustrationthe basic idea in the function model determines the stored energy.
  • the functional model is not optimized for energy storage
  • the supply voltage is 40V
  • the ohmic resistance of the coils is 5 ohms.

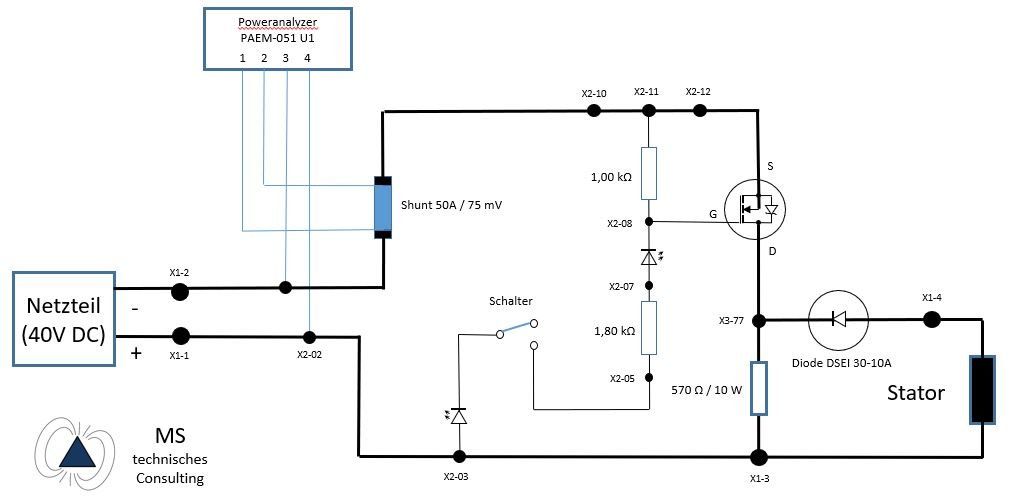

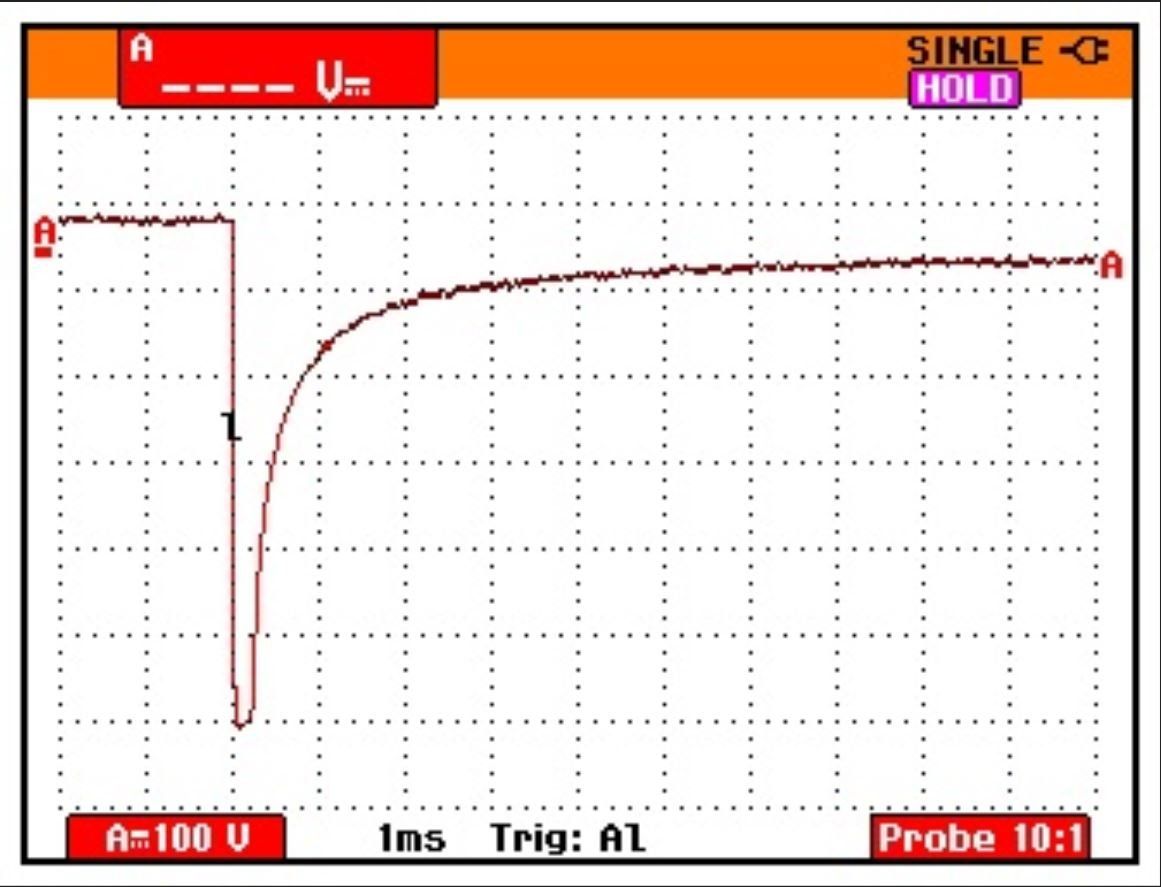

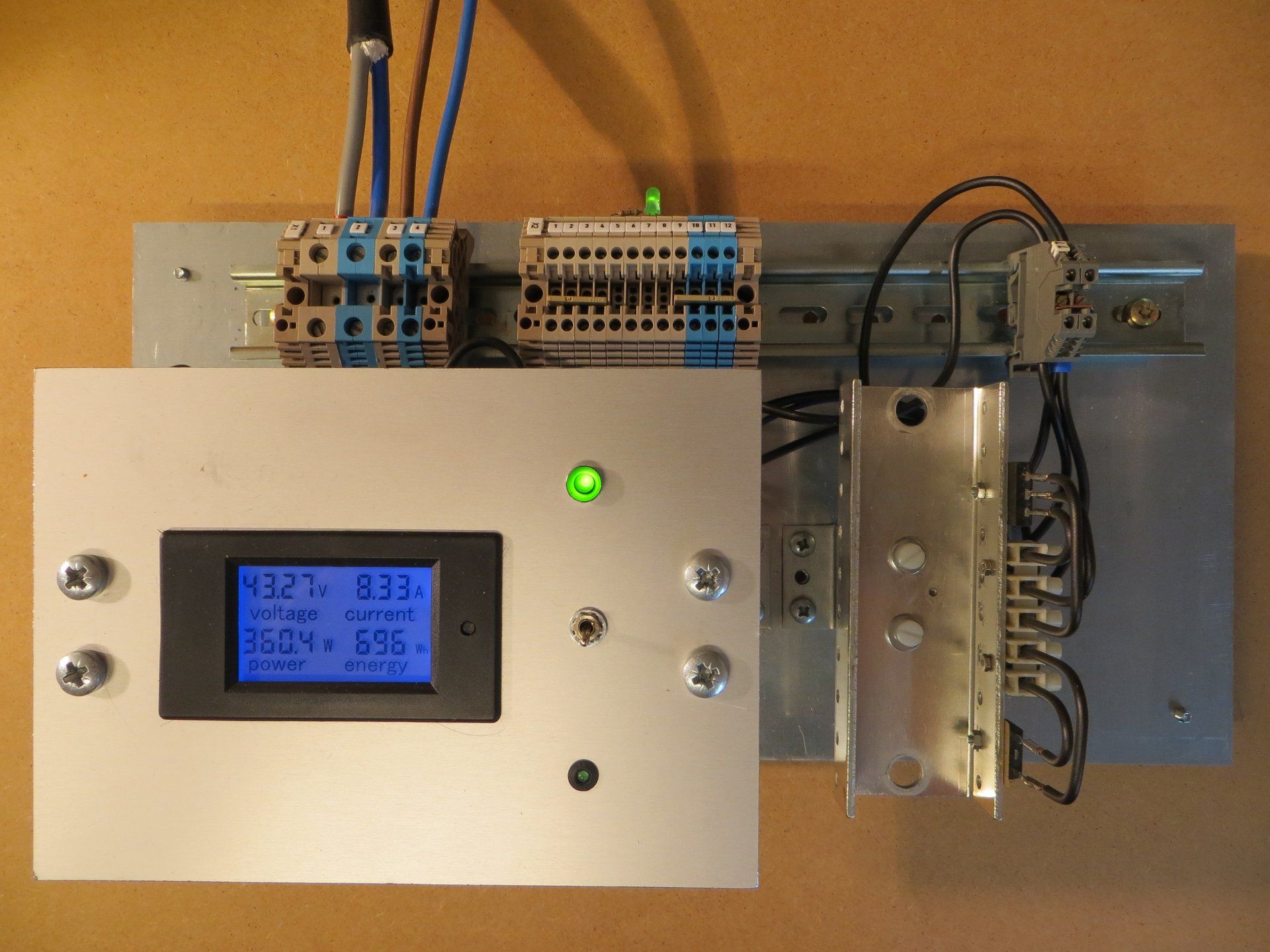

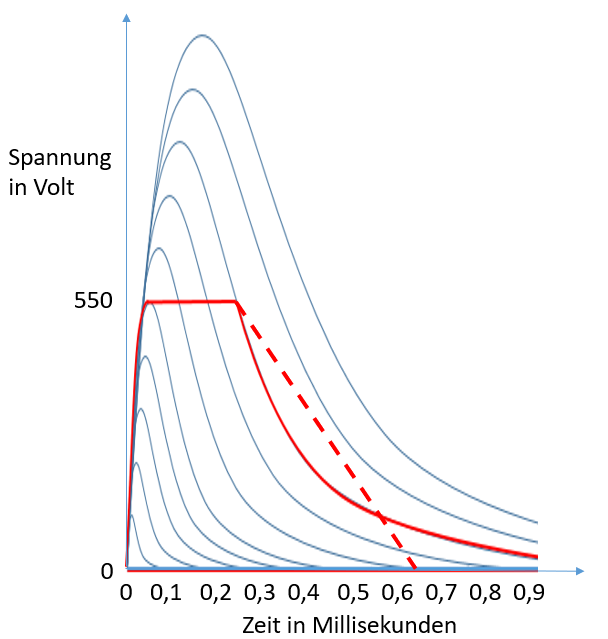

  • the maximum measured induction voltage is approx. 550V
  • the "internal" current is 110 A for a short time
  • the stored energy is about 30 Ws
